The First Compost Heated Greenhouse

In his book Green Wizardry, John Michael Greer argues that we would do well to look back to the work accomplished in the 1970s regarding appropriate technology and sustainable living.

In particular, he often mentions the innovative projects of The New Alchemists, who founded a research institute in Cape Cod, Massachusetts at the height of the sixties counterculture in 1969, and published the results of their projects and experiments in journals throughout the 70s and 80s.

The New Alchemists collaborated with thinkers like the economist E.F.Schumacher and the technologist Buckminster Fuller, mixing together technology and counterculture values in an attempt to re-think how the systems that support human life and culture might be balanced with the health of the ecosystems that make our existence possible.

Experiments were conducted with solar energy, wind power, their fully integrated 'bioshelter' on P.E.I., and aquaculture: Greer notes that "the New Alchemy Institute is the reason you've heard of tilapia; that tasty, nutritious and quick-maturing fish was the species they chose for their pioneering work..."

Conversations inside a geodesic dome

The New Alchemy Institute came to a close in 1991, a year when climate change was rapidly rising into public consciousness, leading up to the Kyoto Protocol in 1992.

(I still remember painting an image of the Earth on a t-shirt in Grade 5, and painting 1 9 9 1 below the globe, in honor of Earth Day that year. I was picked out to make a little speech about environmentalism at a local celebration of the day, at Assiniboia Downs, the city's horse racing establishment. I'd really like to know what I managed to write for that, and I think a cassette tape might remain of it, I remember recording some practice sessions, and of the event itself.)

The NAI Greenhouse Project

My ears perked up when I read that the New Alchemists had commissioned  a compost-heated greenhouse project in the early 1980s, in Gaelen Brown's The Compost-Powered Water Heater.

The designer, Bruce Fulford, took the concept of harvesting the heat generated by the composting process in a very different direction than compost heat systems of the French organic farmer and forester Jean Pain in the 1970s.

Whereas Jean Pain had set up compost piles of shredded brushwood outdoors, circulating water through piping that was coiled through the compost to collect heat, Bruce Fulford worked in a climate much colder than the south of France, and attempted to keep the composting process inside the structure the compost was being used to heat.

This of course allows for a lot of the heat that would normally dissipate into the air to be retained in the building, but at the same time creates other problems, not least that the gases generated by compost are also kept within the structure.

Bruce Fulford

The design that Fulford came up with is to my eyes really elegant, balancing human needs with the needs of the ecosystems around us, with just a small amount of modern technology to make human life a little easier than by traditional methods, which is I guess is the key to the New Alchemist's style.

I remember the farmer and writer Joel Salatin saying something along these lines, that he tries to follow nature's patterns as closely as possible he moves his cattle through various pastures (and as he moves his chickens behind them in a mobile coop), but that it was one piece of modern technology that made the whole soil-regenerating process possible, his light-weight portable electric fences.

The trial greenhouse was apparently not without its flaws, but I think the details of this experiment were  important, and have been perfected over time in some larger, commercial-scale systems that I think could have real promise, especially in mid-sized agricultural operations. I also found examining the simpler, original system made it easier to grasp the functioning of the larger systems.

Part of an Agrilab System at Jasper Hills Farm.

I'll look at the details of larger systems developed by Agrilab Technologies in a later blog post, but basically any farm that generates a substantial amount of manure and other compostable materials can use these to generate a fair amount of heat and energy.

This saves them on fuel costs and reduces their carbon emissions, while at the same time produces a lot of high-grade compost that used on the farm or sold, further improving the economics of the operations. Some of the dairy farms in Vermont where these systems have been installed use the compost as bedding for their cattle, which reduces the amount of straw they have to buy and apparently is good for the health of the cows. One of these dairy farms also uses the heat from the compost to warm bio-gas generators, for use in their cheese making facilities, again further reducing fuel costs and the amount of fossil fuels combusted.

It's a virtuous circle, as the more compost that can be integrated into degraded soils might increase the amount of carbon held in the soil rather than in the atmosphere. And if anyone is thinking that there may be energy shortages in the upcoming decades, it could be a help to food security and to rural economies if farms had the ability to generate heat and fuel on-site. Add to that adding red seaweed to cattle feed to dramatically reduce methane emissions and adding biochar to the compost, I'm wondering if cattle farms could go from being major carbon emitters to becoming carbon negative, all the while producing food and restoring soils?

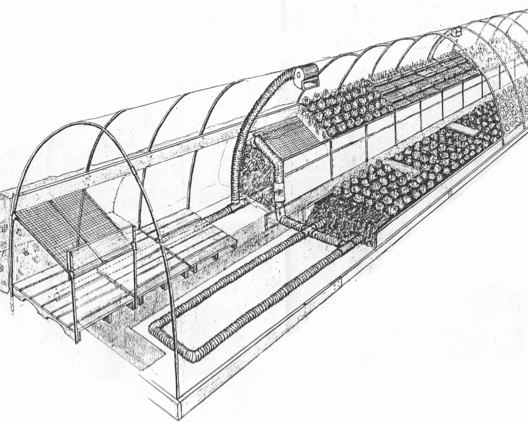

So, going back to the basics of the New Alchemist's greenhouse project: they began with orienting one long side of this 576 sq. ft. greenhouse towards the south (the side facing us in this drawing, that touches the ground right beside the lower garden beds) to collect as much solar thermal energy as possible in the greenhouse.

The compost bins were built (along the back half, opening on the north side of the structure. This drawing shows a cross-section of them empty and of them filled, I've labelled them both "A".)

The bins held 25 cubic yards of compost, and were built with insulated outdoor hatches, so that the compost feedstock and the finished humus could be added/removed from outside the greenhouse. In the first year of operation, NAI reported generating 100 tons of finished compost.

To generate heat, the thermophilic bacteria in compost needs access to oxygen. If the piles become to dense or water-logged, anaerobic bacteria take over and heat production comes to a halt. One way to aerate the piles is to turn the materials, by hand or mechanically. Or you can build up materials, like Jean Pain's shredded brushwood piles or with straw, to have enough interstitial air pockets for air to passively move through the piles. Also, the air can also be pushed through or drawn through by fans, which is what Fulford decided on for this design, and then used that warmed air being drawn through the compost to heat the greenhouse.

Blower fans were located at the top of greenhouse, and moved air through ducts down along north wall of the greenhouse, to underneath the compost piles. Secondary fans were located above the compost chambers to draw the hot, steamy, CO2 rich air up through the compost, and move it into ducts located in the soil below the greenhouse plants.

This lower greenhouse beds, labelled "biofiltration beds" in this diagram, are the most interesting part of the greenhouse to me, as they are used to filter the gases being produced by the compost bacteria.

Compost piles in the open-air don't create a lot of strong odors unless the pile becomes anaerobic, but composting in enclosed spaces is, apparently, a different story. The nitrogen content of the compost feedstock, in particular manure and urine, gets forced out as ammonia gas (NH3) as the pile begins to heat up.

Ammonia gas is irritating to the eyes and lungs, harmful to our health in high enough concentrations, and "will damage plant leaf tissue in concentrations as low as 10ppm." In greenhouse experiments where ammonia gas was not scrubbed from compost exhaust, the plants "suffered chemical burns." (p110, Brown.)

However, Fulford found that if a few inches of mature compost and soil are layered over top of the compost exhaust plenums, these problems were transformed into very beneficial growing conditions for greenhouse plants. As the ammonia (NH3) mixed with the moisture in the exhaust pipe and then in the compost/soil 'biofilter',  it changed into ammonium (NH4+) and remained within the soil, while allowing the CO2 to pass through into the greenhouse air, perfect for the plants to respire.

The author, Gaelen Brown, notes that greenhouses often invest in expensive air exchange systems to increase CO2 levels within greenhouse, noting that compost exhaust is one way carbon dioxide can be supplied through biological means.

The benefits don't end there, however: that ammonium (NH4+) is a means of supplying nitrogen to the garden beds. Some of it is taken up directly by plant root hairs, while the bulk of it transformed into "plant usable" nitrates (NO3-) by the nitrifying bacteria who feed on the high carbon content of the bio-filter.

The layer of compost and soil that served as a bio-filter did require maintenance, especially relating to moisture levels, if it dried-out or became to wet, its performance as a filter lessened.

The addition of earthworms and manure worms helped (as usual!), by creating channels in the soil and though the transformations performed by their digestive systems. Also, the inclusion of several types of clays were found to help increase the amount of nitrogen the biofilter could absorb.

When the biofilter became fully saturated with nitrogen, these soils and mature compost could be removed from the greenhouse and applied as a nitrogen-rich fertilizing ammendment to other soils, another way that we can reduce the amount of synthetic nitrogen fertilizer that we use annually.

NAI Grounds

The blower fans were set at a low speed, and were controlled by a photo sensor switch so that they would only operate in the daytime, to avoid drying out the compost excessively, and also to provide CO2 to the plants when they could best make use of it in photosynthesis. The fans were also controlled with a thermostat, so that if the temperature in the greenhouse dropped below 40F during the night, the fans would turn on, and draw heat from the compost to raise up the greenhouse air temperatures.

They greenhouse experiment was taken through the winter in Vermont, and they did have some problems with how they constructed the shell of the greenhouse. It allowed a lot of heat to escape, and apparently they also failed to add new compost feedstocks at a rate to keep the temperatures up.

That said, they managed to keep the greenhouse above freezing for most of the winter, and on some especially cold nights where greenhouse air temps hovered around freezing, the heat retained in the garden beds weathered them over, even the lettuce and parsley crops managed to get through the cold nights unharmed.

In general, Fulford recorded this project to be 23 - 35F (13 - 19C) warmer than outside air, a differential which could be greatly improved with a better greenhouse construction, but which proved to be adequate even as it was.

Brown doesn't mention in his book what happened to the greenhouse after the trial period was over, and the report was written up. I notice in this picture, which I think is of this same greenhouse, I don't see any blower fans mounted along the apex, I wonder if the New Alchemists took out the apparatus and just used it as a regular, season-extending greenhouse after the experiment came to a close?

Conan Eaton's Compost System

Whatever the case, this project was one of the few undertakings that kept compost heat recovery technology alive in the decades after Jean Pain's death. These basics, of using fans to aerate indoor compost piles, using that air instead of water as the heat transfer medium, and using a biofilter to scrub the exhaust gases have been incorporated into larger, much more reliable designs, which I want to look at in the next post in this series, along with some other low-tech, DIY systems that I really appreciate as well.

I would also like to keep looking into the other experiments of the New Alchemy Institute. In Green Wizardry, Greer includes a lot of exercises for the reader & 'green wizard' aspirant, and one of them is to go the local used bookshops, and see what copies of 1970s appropriate technology books might be found. I got a copy of Tomorrow is Our Permanent Address by two of the founding New Alchemists, John Todd & Nancy Jack Todd, I hope to learn more about their ideas on integrated bio-shelters.
